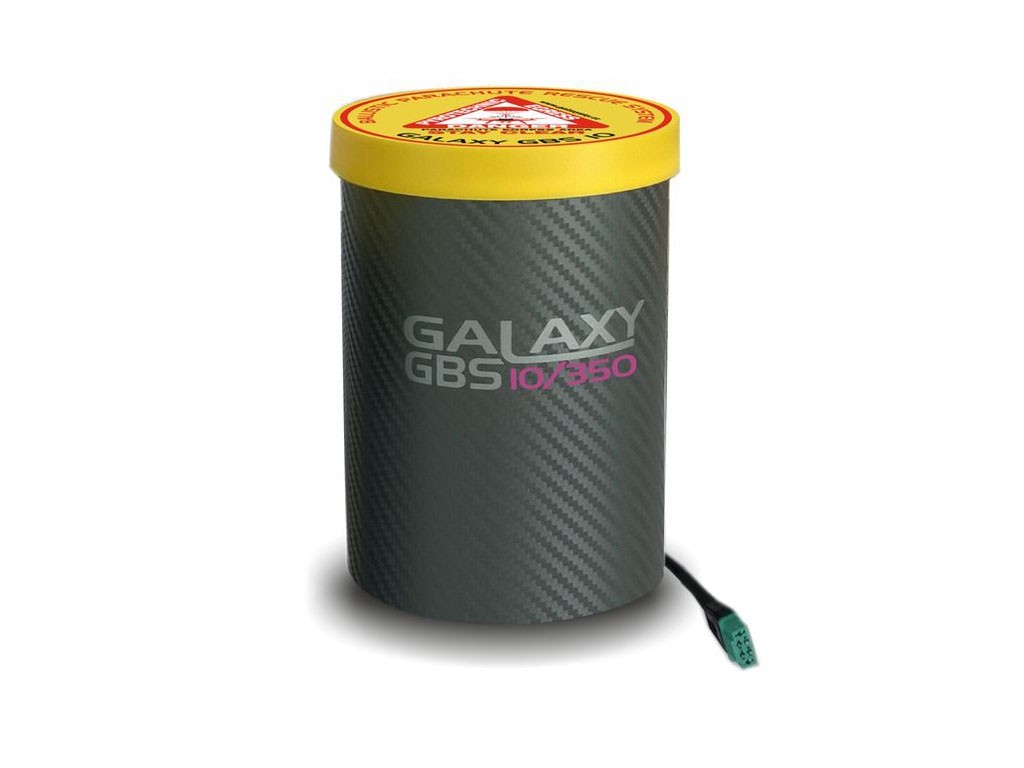

PARACHUTE GBS 10/350 UAV
The GBS 10/350 UAV parachute is a ballistic rescue system for an unmanned aerial vehicle (UAV) manufactured by the world-class company Galaxy GRS. Don't risk it, buy a parachute for your drone today!
Reliable rescue system
Ballistic unmanned aerial rescue system (UAV) manufactured by the world-class company Galaxy GRS.
SPECIFICATION
Weight | 725 g |
Recommended MTOM UAV | 15-35 kg |
Speed not exceedable (VNE) Slider
| 80 km/h |
Canopy opening time (+ 0.5s for full inflation) – for altitudes 0-1500 AMSL
| 0,8 s |
Minimum height for starting the system
| 8 m |
Descent speed
| 3,7-6,1 m/s |
Impact energy
| 100-680 J |
Ejection method
| Ballistic device
|
Tests | VUT Brno VZLU Praha |
Parachute canopy
| |
Number of ropes and panels
| 14 |
Nominal diameter
| 3 m |
Central rope
| Yes |
Slider | Nr |
Ballistic device
| |
Activator | Pyrotechnic charge |
Working temperature
| -20°C~40°C |
Dimensions | ϕ100x190 |
